Accurate + Efficient + Safe

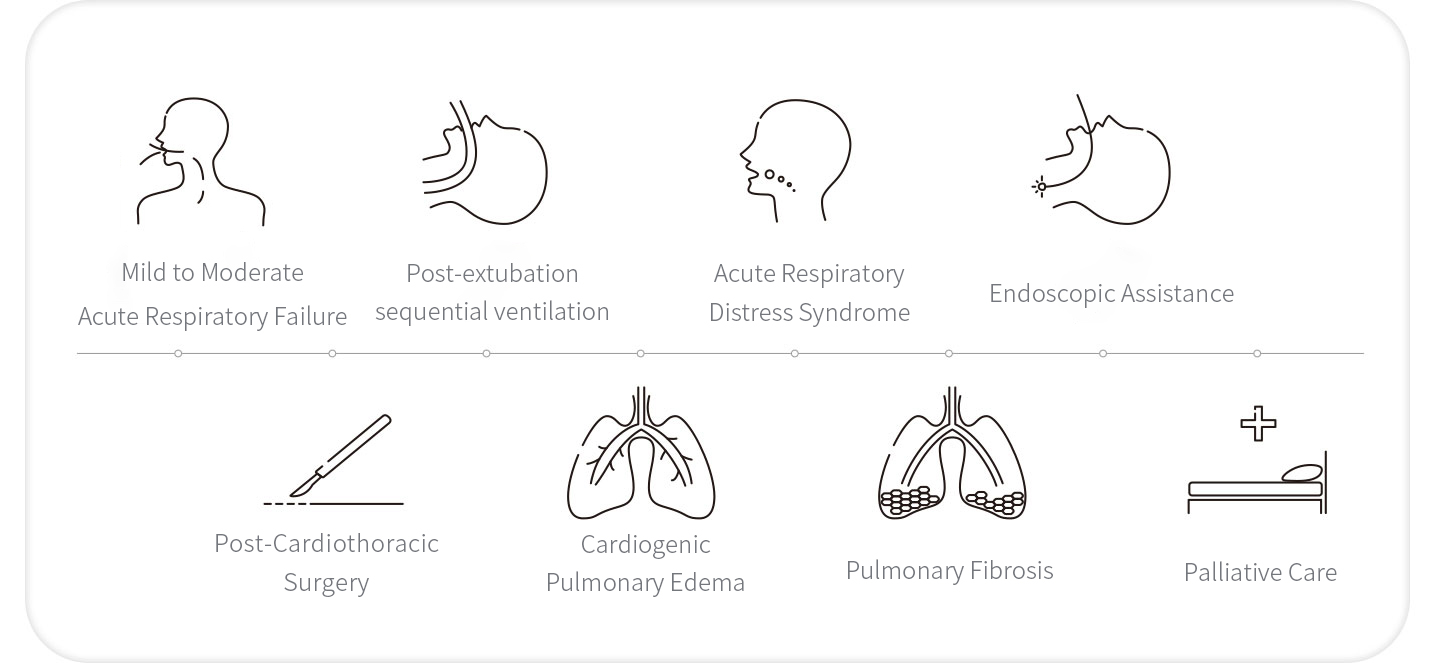

Clinical Application
Product List
-
Hosts（1 set） -
Humidifier (1 set) -
Air filter (6 PCS) -
Heating Tube（1 PC） -
User Manual（1 copy） -
Certificate of conformity（1 copy） -
Warranty card （1 copy） -
Trolley （1set）
Easy installation
1
Press the lock button on the humidifier tank of the host
2
Push the humidifier tank into the host with the heat plate attached
3
Press the lock button of the humidifier tank again
4
Attaching the water bag to the humidifier tank
5
Install the breathing circuit to the humidifier outlet
6
Patient-side connection of an appropriate nasal cannula
Specifications
| Model | HFO-80 | HFO-80M | |||||
|
Flow range |
Junior mode:2-25L/min
Adult mode:10-80L/min
|
Junior mode:2-25L/min
Adult mode:10-80L/min
|
|||||
|
Temperature Output Range |
Junior mode: 31-34 Adult mode: 31-37 |
||||||
|
Adjustment accuracy: 0.5°C |
|||||||
|

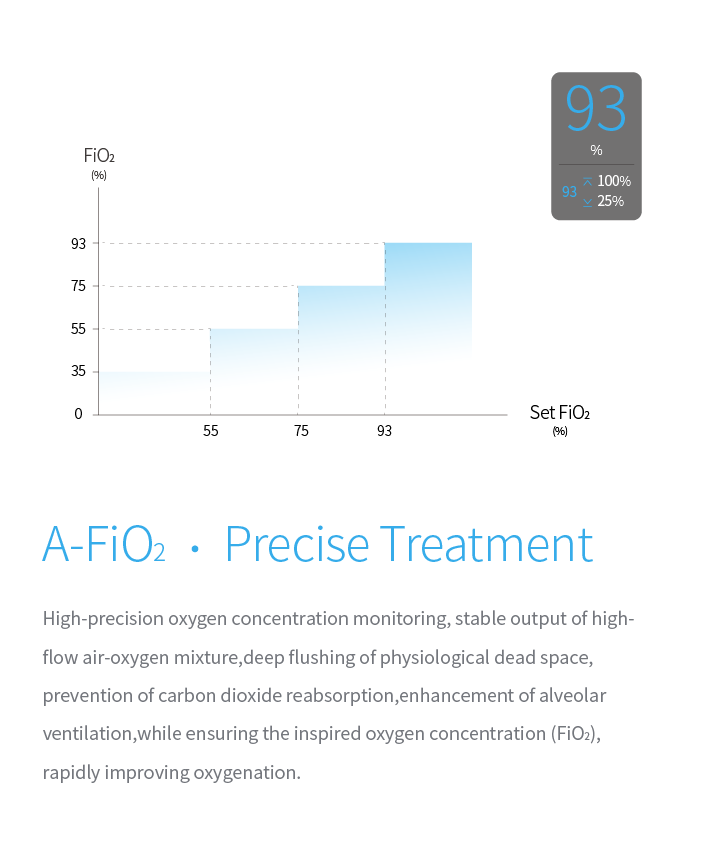

FiO2 monitoring range |
21% - 100% |
||||||
| FiO2 setting range | 21% - 100% | ||||||
|
Adjustment Method of FiO2 |
Auto |
||||||
|
Humidity output |
>33mg/L at 37°C target; >12mg/L at 31-36°C | ||||||
|
Oxygen source pressure range |
276-600 kPa | ||||||
|
Preheating time
|
30Min | ||||||
|
Maximum capacity of
water chamber (Auto-fill)
|
160±20 ml |
||||||
|

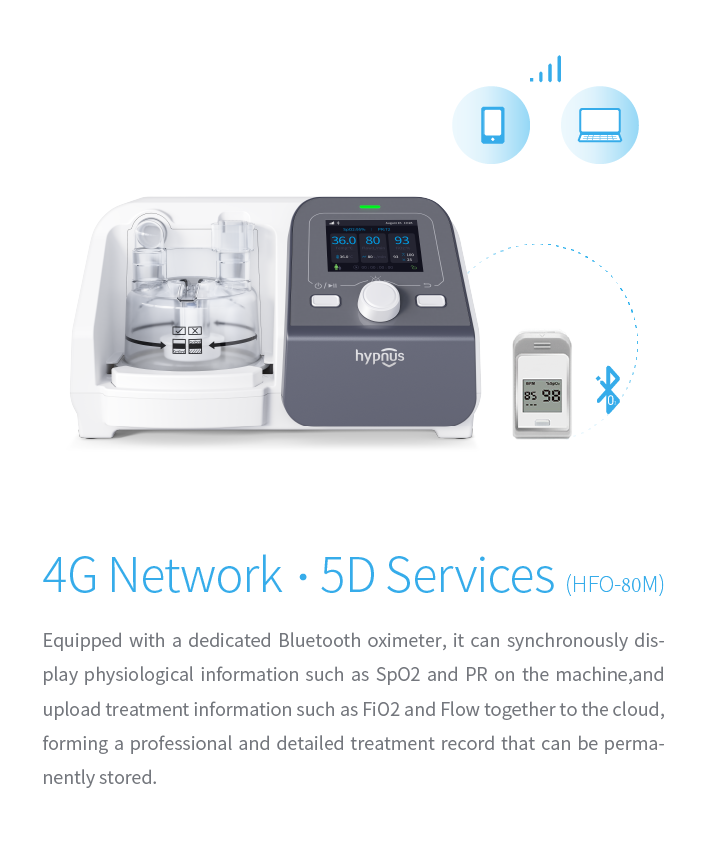

Bluetooth and wireless
communication module
|
N/A | Support | |||||
|

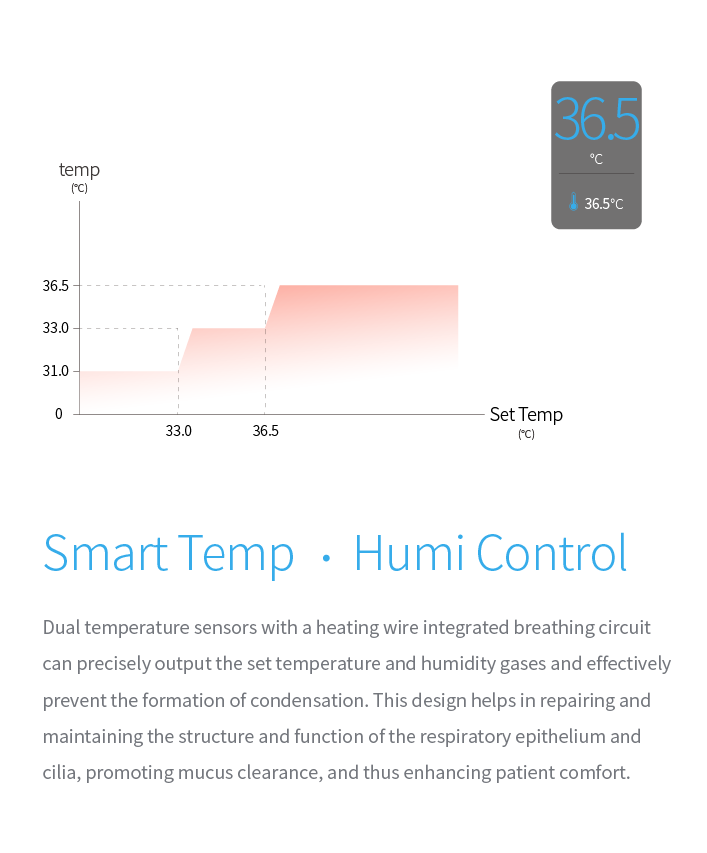

Heated breathing tube
|
Dual temperature sensors with heating wire integrated breathing tube; Length:
1.8±0.18m. |
||||||
|
Rated voltage and frequency
|
100-240V ~, 50 / 60Hz | ||||||
