8 Series PAP Device For Sleep Therapy

Product Service

HYPNUS

PAP Device

Focus on Accuracy and Efficiency

Compared with the previous generation products,the 8 Series PAP device has made a significant upgrade to enhance the performance and function.Two new treatment modes have been added,Real time treatment data display in waveform on The 3.5-inch screen with exclusive patented technologies such as detachable humidifier,air leak baseline calibration technology.A precise care,a comfortable treatment.

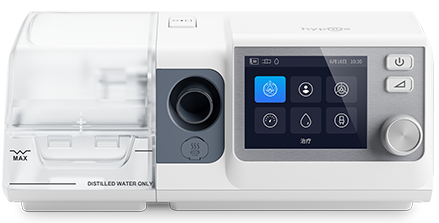

8 Series PAP Device

CA820 / CA820W / BA825 / BA825W

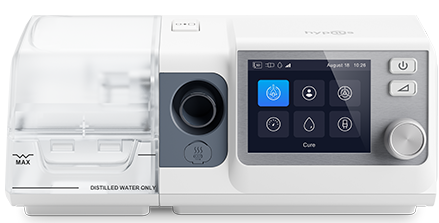

8 Series PAP Device

SV825W

Upgraded Treatment Efficacy with New Modes

Professional Display of Therapy Data

Real-time waveform, along with treatment data such as inhale pressure (IPAP), exhale pressure (EPAP), tidal volume (Vt), air leakage (LK), minute ventilation (MV) and respiratory rate (RR), etc. are available. The pulse oximeter can be connected to Hypnus PAP device wirelessly to show real-time oxyhemoglobin saturation (SpO2) and pulse rate (PR) on ventilator screen. A comprehensive and professional therapy report can be generated.

Real-time waveform

Software data analysis

Remarkable Pressure Regulation Speed

Even to increase the pressure from minimum (4cmH2O) to maximum (30cmH2O), it only takes less than 500 milliseconds. This is a particularly important guarantee for patients with high respiratory rate to get their prescribed pressure and tidal volume during treatment.

Response speed comparison

Response speed

Accurate Detection of Respiratory Events

Advanced respiratory events as Cheyne-Stokes respiration(CSR) and central sleep apnea (CSA) can be detected precisely, thus effectively avoid lung injury caused by misadjustment of pressure. Moreover, the highly intelligent leakage compensation technology guarantees the accuracy of event detection, even in the case of excessive air leakage.

Product List

Humidifier (1 set)
CPAP Device (1 set)
Power adapter (1 PC)
Mask (1 PC)
Air Tubing (1 PC)
Air filter (3 PCS)
SD card (1 piece)
Carrying case (1 PC)
Warranty card (1 copy)
User Manual (1 copy)
Certificate of conformity(1 copy)

Easy installation

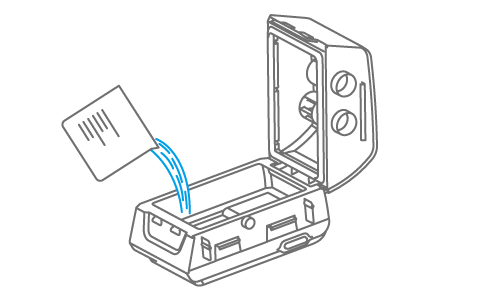

Open the upper cover of humidifier

Remove the airway protection plug
from the side of the main unit

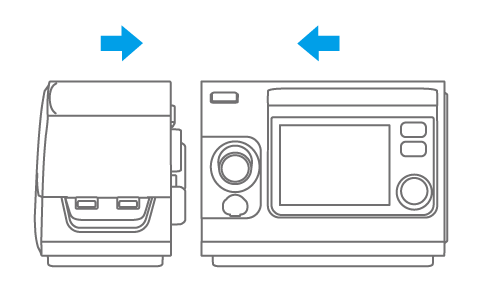

Place the device on a stable level
surface, connect humidifier

Insert SD card into the device

Insert air filter into the device

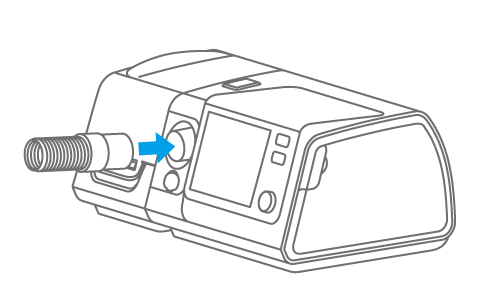

Connect air tubing to the air outlet of device

Connect another side of air tubing to mask

Connect the power adapter

The operation video

Helps you quickly learn how to use the Hypnus Sleep CPAP

Watch the film

Specifications

Subseries	CA8	BA8	SV8
Model	CA820 CA820M(GSM) CA820W(WIFI)	BA825 BA825M(GSM) BA825W(WIFI)	SV825M(GSM)) SV825W(WIFI)
Treatment Modes	CPAP APAP	CPAP BPAP-S Auto BPAP-S	CPAP ASV Auto ASV
Pressure	4-20cmH₂O	4-25cmH₂O	4-25cmH₂O
Ramp	5-45 min
Noise	27±2dB (Real-time measurable)
Humidifer	Double short-circuit protection,Five-level control of temperature and humidity
Heating Tube	Adjustable temperature from 16°C to 30°C
Humidifier Preheating	Humidifier can be preheated for 1 hour in advance
Data Management	The SD card stores data for about two years Accessed the "iHypnusCare" for the data to be stored permanently
Air Leakage Compensation	Adaptive leakage dynamic calibration technique
Respiratory Event Record	AH, FL, SNORE, LEAK, CSA, PB
Mask	Nasal Mask
Indication	• Snoring • Obstructive Sleep Apnea • Obesity and Hypoventilation		• Central Sleep Apnea • Mixed Sleep Apnea

(Hypnus PAP device with GSM/WIFI can connect wireless pulse oximeter via bluetooth.)
