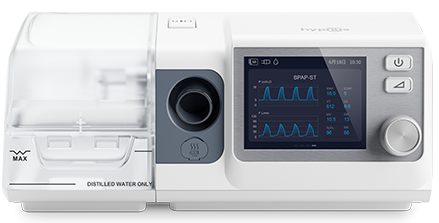

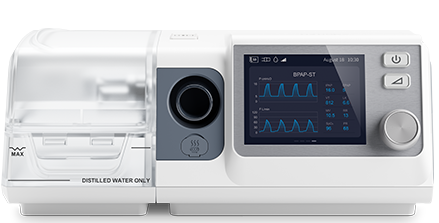

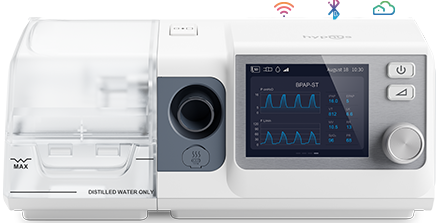

8 Series BPAP Device For Respiratory Insufficiency

Product Service

HYPNUS

PAP Device

Focus on Accuracy and Efficiency

Compared with the previous generation products,the 8 Series PAP device has made a significant upgrade to enhance the performance and function.Two new treatment modes have been added,Real time treatment data display in waveform on The 3.5-inch screen with exclusive patented technologies such as detachable humidifier,air leak baseline calibration technology.A precise care,a comfortable treatment.

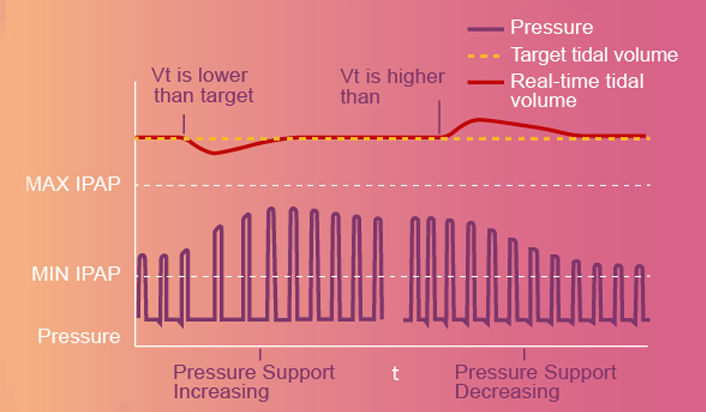

Upgraded Treatment Efficacy with New Modes

Professional Display of Therapy Data

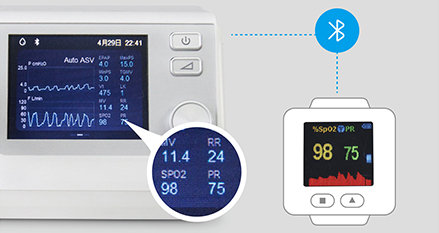

Real-time waveform, along with treatment data such as inhale pressure (IPAP), exhale pressure (EPAP), tidal volume (Vt), air leakage (LK), minute ventilation (MV) and respiratory rate (RR), etc. are available. The pulse oximeter can be connected to Hypnus PAP device wirelessly to show real-time oxyhemoglobin saturation (SpO2) and pulse rate (PR) on ventilator screen. A comprehensive and professional therapy report can be generated.

Real-time waveform

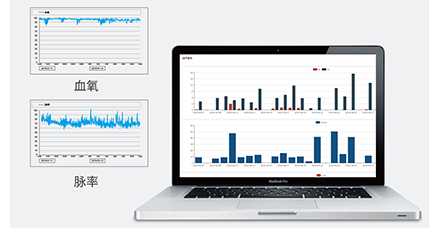

i-cloud data display

Remarkable Pressure Regulation Speed

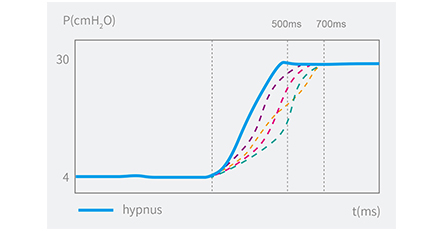

Even to increase the pressure from minimum (4cmH2O) to maximum (30cmH2O), it only takes less than 500 milliseconds. This is a particularly important guarantee for patients with high respiratory rate to get their prescribed pressure and tidal volume during treatment.

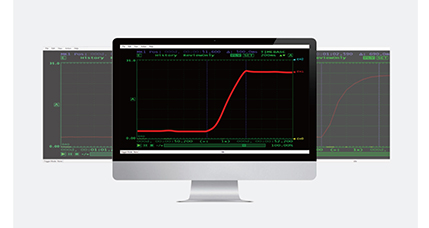

Response speed comparison

Response speed

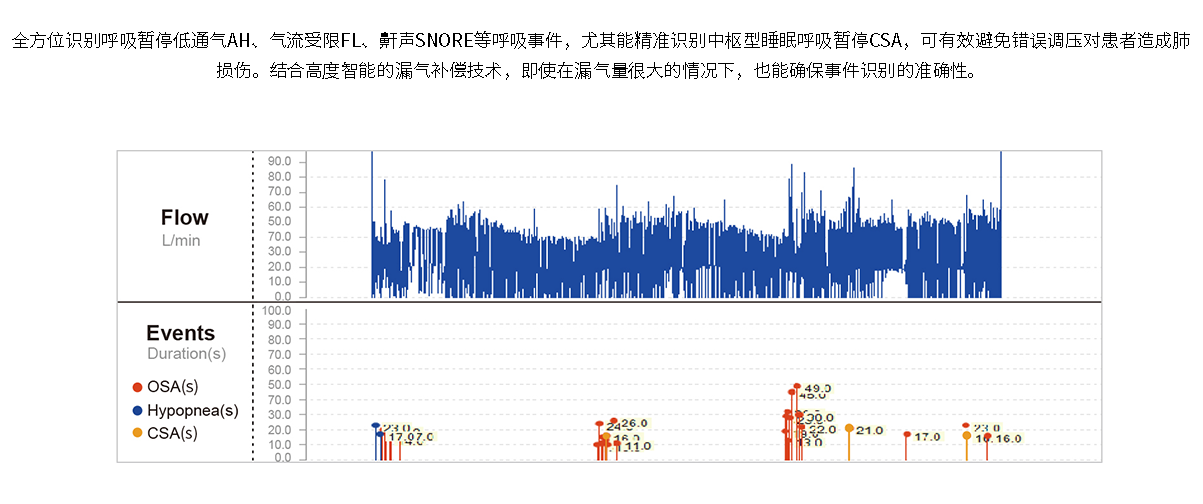

Accurate Detection of Respiratory Events

Advanced respiratory events as Cheyne-Stokes respiration(CSR) and central sleep apnea (CSA) can be detected precisely, thus effectively avoid lung injury caused by misadjustment of pressure. Moreover, the highly intelligent leakage compensation technology guarantees the accuracy of event detection, even in the case of excessive air leakage.

Product List

Humidifier (1 set)
CPAP Device (1 set)
Power adapter (1 PC)
Mask (1 PC)
Air Tubing (1 PC)
Air filter (3 PCS)
SD card (1 piece)
Carrying case (1 PC)
Humidifier User Manual (1 copy)
User Manual (1 copy)
Qualification Certificate (1 copy)

Easy installation

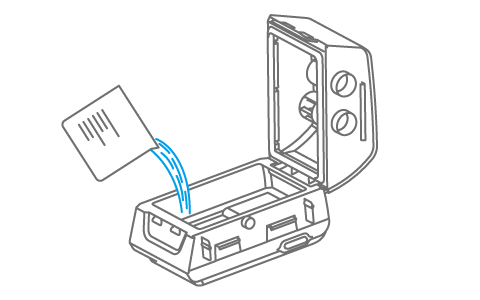

Open the upper cover of humidifier

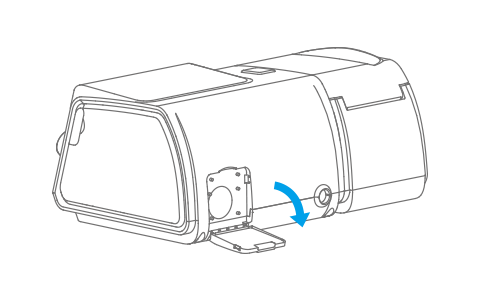

Remove the airway protection plug
from the side of the main unit

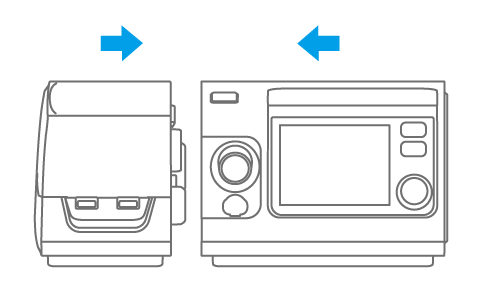

Place the device on a stable level
surface, connect humidifier

Insert SD card into the device

Insert air filter into the device

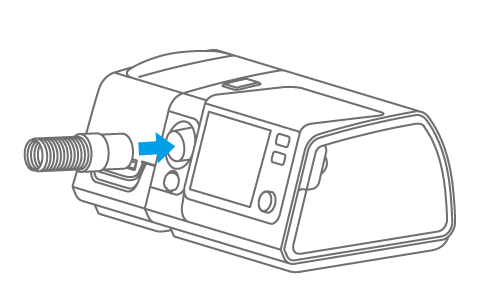

Connect air tubing to the air outlet of device

Connect another side of air tubing to mask

Connect the power adapter

The operation video

Helps you quickly learn how to use the Hypnus Sleep CPAP

Watch the film

Specifications

Subseries	ST8
Model	ST830	ST830M(GSM)	ST830W(WIFI)
Treatment Modes	CPAP BPAP-S BPAP-T BPAP-ST	CPAP BPAP-S BPAP-T BPAP-ST	CPAP BPAP-S BPAP-T BPAP-ST
Pressure	2-30cmH₂O	2-30cmH₂O	2-30cmH₂O
iVOPS	Support
Target Tidal Volume	200-1500ml
Respiratory Rate	5-40bpm
Ramp	5-45 min
Noise	26±3dB (Real-time measurable)
Humidifer	Double short-circuit protection,Five-level control of temperature and humidity
Heating Tube	Adjustable temperature from 16°C to 30°C
Humidifier Preheating	Humidifier can be preheated for 1 hour in advance
Data Management	The SD card stores data for about two years Accessed the "iHypnusCare" for the data to be stored permanently
Air Leakage Compensation	Adaptive leakage dynamic calibration technique
Real-time Treatment Parameters Monitoring	IPAP, EPAP, VT, LK, MV, RR, SpO₂, PR
Respiratory Event Record	AH, FL, CSA, CSR
Mask	Full face Mask
Indication	• Pulmonary Insufficiency • Chronic Obstructive Pulmonary Disease • Carbon Dioxide Retention

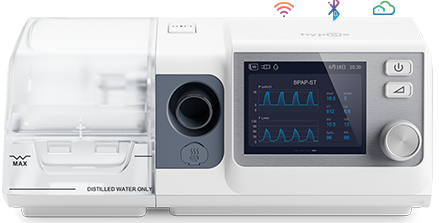

(Hypnus PAP device with GSM/WIFI can connect wireless pulse oximeter via bluetooth.)
