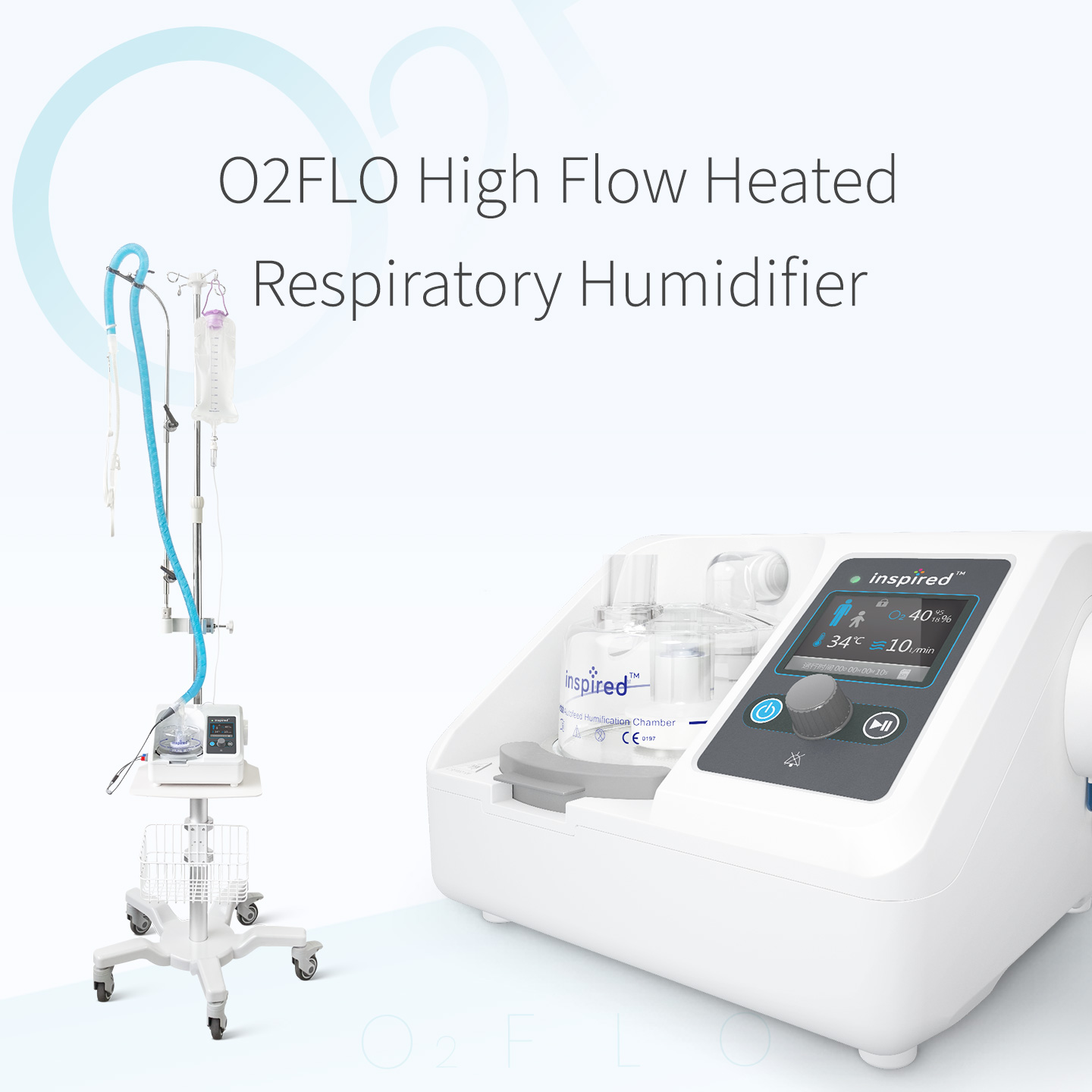

O2FLO Respiratory Unit
-

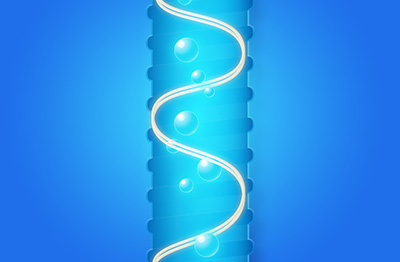

Standard Heated Humidification• Heated humidification during high flow oxygen therapy • Standard humidity maintained for different temperature settings
-
Easy Maintenance• Gas departs from disposable chamber. preventing pollution of the device. • No sterilization needed. maintenance work is largely reduced. -

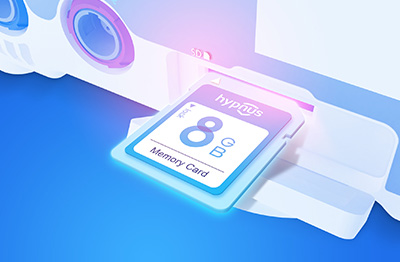

History Record• SD card to record user's information. • Traceable data for future use. -

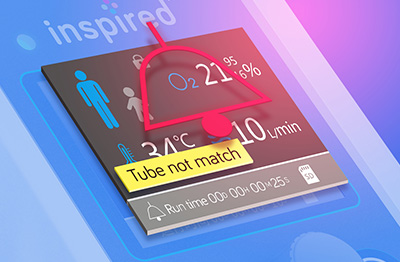

User Friendly• 2.8 inch LCD screen display for dear function display. • Universal power cord. • Comprehensive safety alarm system. • Lightweight and portable. -

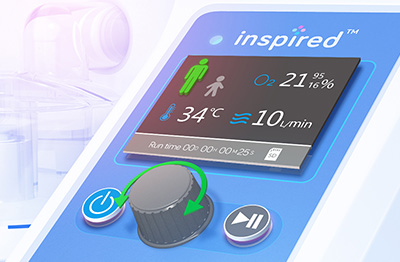

Adjustable Flow Setting And Temperature• Easily operated by buttons and rotating knob. • Support a wide flow rate ranged from 2-60 UMin. • Different temperature settings.31-34℃ for junior mode and 31-37℃ for adult mode. -

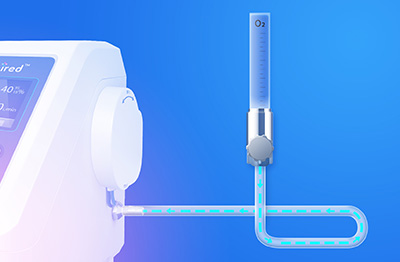

Oxygen Supply• Oxygen can be supplied from an oxygen compressor or wall supply or oxygen cylinder. • Inbuilt ultrasonic O2 sensor.requires no calibration.service or replacement.
Package Content
-
O2FLO Host(1PC) -
Heater Connection Cable(1 PC) -
Temperature Probe (VUN-200)(1 PC) -
Bracket Base(1 PC) -
Filter(5x5 PCS) -
Oxygen Tube(1 PC) -
User Manual (1 PC) -
Quick Guide(1 PC) -
VUN-300 Connection Cable(1 PC)
The operation video
Helps you quickly learn how to use the O2FLO
Watch the film
Specifications
| product line | High Flow Heated Respiratory Humidifier | |||
|---|---|---|---|---|
|
Flow Rate Range |
Adult Mode 10~60L/min
Pediatric Mode 2-25L/min |
|||
|
Dew Point
Temperature
Range |
Adult Mode 31-37℃(Accuracy±2℃)
Pediatric Mode 31-34℃(Accuracy±2℃)
|
|||
|
Oxygen Concentration
Range |
21% - 100%(Accuracy±5%) | |||
|
Sound Pressure level |
Alarms exceed 50dB(A)@1m |
|||
|
Humidity |
>33mg/L @37℃ >12mg/L @ 31~36℃ |
|||
